Carrier heat pump fault code 84 means “High Pressure Lockout for 4 Hours” on Infinity variable-speed models. The outdoor unit’s high-pressure switch has tripped repeatedly, so the control shuts the heat pump down for four hours to protect the compressor. It’s easy to confuse with code 83, which is the low-pressure lockout.
Carrier heat pump fault code 84 doesn’t mean the compressor has failed. It means something is stopping the system from getting rid of heat, and where to look depends on whether you were heating or cooling when it happened.
Table of Contents

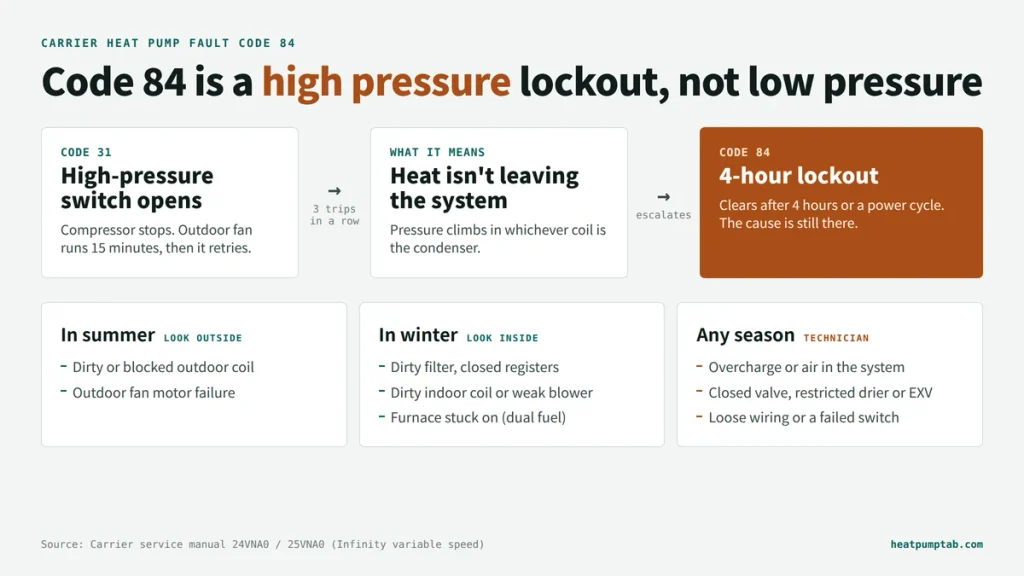

How the system gets to code 84
Code 84 is the last step in a sequence. In the service manual for Carrier’s 25VNA0 (Infinity with Greenspeed Intelligence):
- The high-pressure switch opens and the system logs code 31. The compressor stops, the outdoor fan keeps running for 15 minutes, and then the unit tries again.
- If the switch trips on three consecutive cycles, the control escalates to code 84 and locks the unit out for four hours.
On the older 25VNA8 (Infinity 18VS), the control steps down to a lower speed after each trip and escalates to 84 when the switch trips even at the lowest stage. Either way, by the time you see 84, the system has already tried to protect itself several times.
Check your model number first. Everything on this page applies to Infinity units that show plain two-digit codes, such as the 25HNB6/9 two-stage, the 25VNA8 and the original 25VNA0. Newer Infinity Greenspeed units, such as the 25VNA4 (Infinity 24), show two-part codes. On those, 84-58 is a different fault: the variable-speed drive (VFD) is overheating, and the unit locks out for 2 hours. The high-pressure lockout on those models is 31-58.
Where the code shows up
You’ll see Carrier heat pump fault code 84 on the Infinity wall control, and on the amber STATUS light on the outdoor unit’s control board. The board flashes the first digit as short flashes and the second as long flashes, so code 84 is eight short flashes followed by four long ones.
Why high pressure happens in winter too
A heat pump gets rid of heat through whichever coil is acting as the condenser. In cooling, that’s the outdoor coil. In heating, it’s the indoor coil. So a Carrier heat pump fault code 84 in January usually points indoors: poor airflow across the indoor coil lets pressure climb until the switch opens. If the air from your vents also feels cool, our guide to a heat pump blowing cold air in heat mode walks through the other causes.
Common causes of Carrier heat pump fault code 84
| Cause | Cooling | Heating | Who fixes it |
|---|---|---|---|
| Dirty filter, closed or blocked registers | – | Yes | You |
| Dirty indoor coil or weak blower | – | Yes | Technician |
| Dirty or blocked outdoor coil | Yes | – | You (rinse) or technician |
| Outdoor fan motor failure | Yes | – | Technician |
| Furnace stuck on while the heat pump runs (dual fuel) | – | Yes | Technician |
| Refrigerant overcharge, or air and moisture in the system | Yes | Yes | Technician |
| Service valve left closed (new installs) | Yes | Yes | Installer |
| Restricted filter drier or expansion valve | Yes | Yes | Technician |
| Reversing valve stuck in the cooling position | – | Yes | Technician |
| Loose switch wiring or a failed pressure switch | Yes | Yes | Technician |
The list comes from Carrier’s own troubleshooting table for Carrier heat pump fault code 84. Carrier treats the switch itself as faulty if it’s open while discharge pressure is below about 610 psig (±20 psig), which a technician checks with gauges.
What you can check yourself
- Replace the air filter, even if it doesn’t look dirty.
- Open every supply register and make sure no return grille is blocked by furniture or rugs.
- In summer, switch off power to the outdoor unit and gently rinse the coil with a garden hose. Never use a pressure washer. In winter, clear snow away from the unit.
- If a gas furnace backs up your heat pump, check that the furnace isn’t firing while the heat pump is heating. A furnace stuck on is one of the causes Carrier lists.
- Wait out the four-hour lockout, or clear it by switching the system off and on at the breaker. If 84 comes back, stop resetting. The switch is doing its job, and the cause is still there.
A real case: airflow, not the compressor
On one heating forum, the owner of a Carrier Infinity heat pump paired with a gas furnace got fault code 84 in mild North Carolina weather. The technician measured total static pressure at 1.03 inches of water column, roughly double the 0.5 inches most residential blowers are rated for. A dirty indoor coil, a restricted filter drier and a plugged expansion valve were all raised as suspects. New filters and a coil cleaning cleared the code for a while, but an experienced contributor warned that the airflow problem needed a proper diagnosis rather than a reset.
Carrier codes that travel with 84
| Code | Meaning | Type |
|---|---|---|
| 31 | High-pressure switch open | Event: retries after 15 minutes |
| 32 | Low-pressure trip | Event: retries after 15 minutes |
| 83 | Low-pressure lockout | 4-hour lockout |
| 84 | High-pressure lockout | 4-hour lockout |
| 85 | Compressor temperature lockout | 4-hour lockout |
| 88 | Inverter temperature lockout | 4-hour lockout |
These numbers come from Carrier’s Infinity variable-speed service manuals. Other Carrier and Bryant product lines can number their faults differently, so confirm against the manual for the model number on your outdoor unit’s rating plate. Have a different brand? See our guides to Mitsubishi mini split error codes, the Daikin U4 error and a Trane heat pump blinking light.
What fixing Carrier heat pump fault code 84 usually costs
| Repair | Typical cost |
|---|---|
| New filter, rinsing the outdoor coil | Under $50 if you do it |
| Service call and diagnosis | $75–$250 |
| Control board | $150–$700 |
| Blower or outdoor fan motor | $200–$700 |
| Expansion valve | $250–$800 |
| Reversing valve | $200–$700 |
| Refrigerant leak repair and recharge | $300–$1,200 |
Ranges are national figures from Angi (May 2026) and Fixr (January 2026). If a big repair is on the table, compare it with what a new system costs: see our heat pump installation cost by state data from real homeowner quotes.
Frequently asked questions
Is Carrier heat pump fault code 84 an emergency?
No. The lockout protects the compressor. If your system has electric backup heat or a furnace, you may still have heat during the lockout. If it doesn’t and it’s freezing outside, call for service sooner.
How do I clear Carrier heat pump fault code 84?
It clears by itself after four hours if the condition has gone, or immediately with a power cycle at the breaker. Clearing it doesn’t fix the cause.
Is code 84 low pressure or high pressure?
High pressure. On Carrier Infinity variable-speed systems, the low-pressure lockout is code 83.
Sources
- Carrier, Service Manual 24VNA0 / 25VNA0
- Carrier, Service Manual 25VNA8 Infinity 18VS
- HeatingHelp forum, Carrier Infinity code 84 thread
- Angi, Heat Pump Repair Cost (2026)
- Fixr, Heat Pump Repair Cost (2026)
- Carrier, Installation Instructions 25VNA4 Infinity Variable Speed Heat Pump, 25VNA4-03SI (February 2021)
Updated October 2026: added the 84-58 meaning on newer Infinity Greenspeed models.
